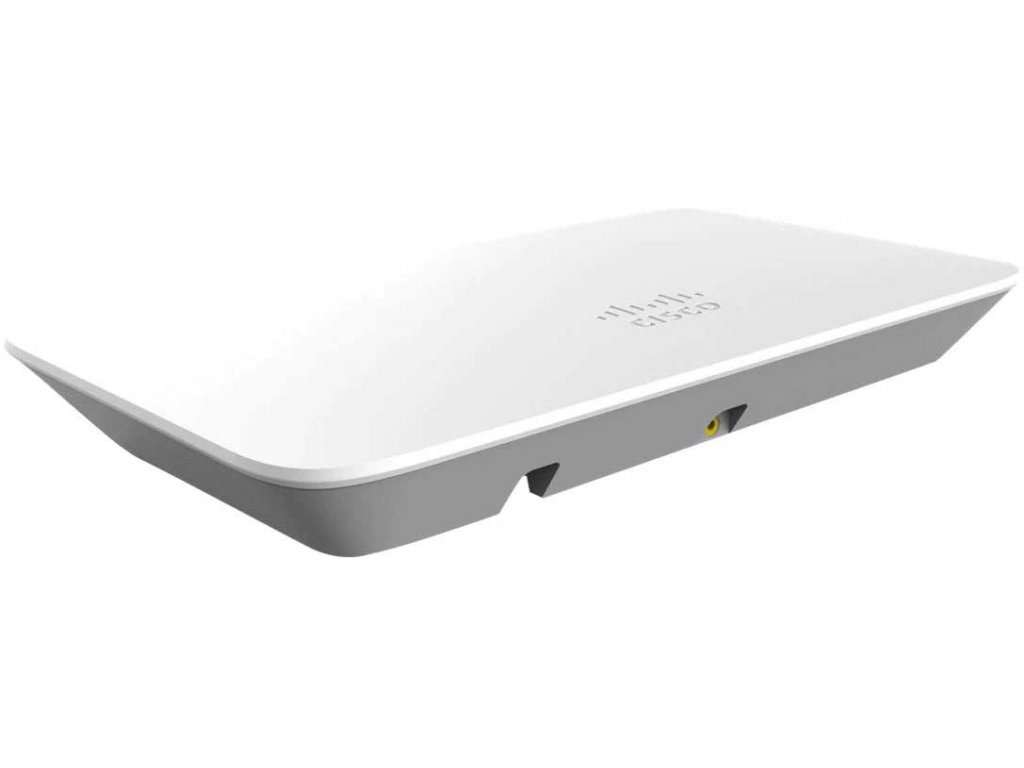

Meraki Go GR10 - wireless access point Meraki Go GR10 - bezdrôtový prístupový bod

Podrobný popis

Radios

2.4 GHz 802.11b/g/n client access radio
5 GHz 802.11a/n/ac client access radio
Supported frequency bands (country-specific restrictions apply):
2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.250-5.350 GHZ (UNII-2)
5.470-5.600, 5.660-5.725 GHz (UNII-2e)
5.725 -5.825 GHz (UNII-3)


802.11ac and 802.11n Capabilities

2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) & Beamforming
20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
Up to 256 QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation
Antenna

Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)

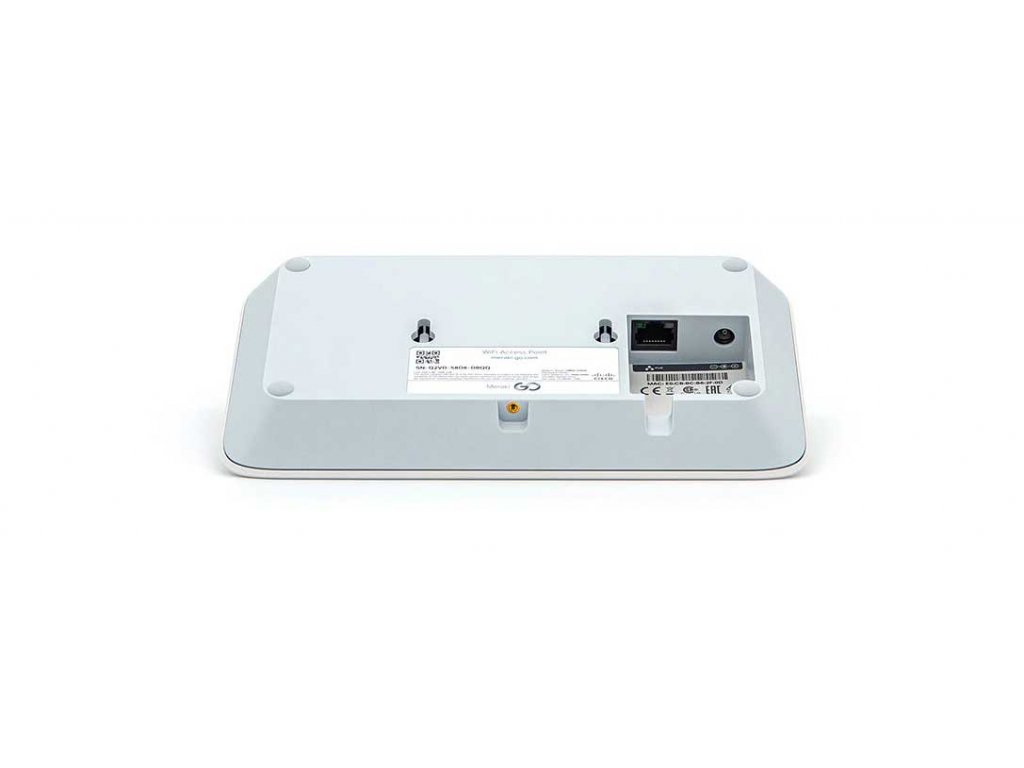

Interfaces

1x 10/100/1000 BASE-T Ethernet (RJ45)
1x DC power connector (5.5 mm x 2.5 mm, center positive)
Power

Power over Ethernet: 37 - 57 V (802.3af compatible)
Alternative 12 V DC input
Power consumption: 11W max (802.3af)
Power over Ethernet injector sold separately
Environment

Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Physical Dimensions

7.95” x 4.8” x 1” (202 mm x 123 mm x 26 mm), not including deskmount feet or mount plate
Mobility

PMK and OKC for fast Layer 2 roaming
LED Indicators

2 Ethernet status
1 power/booting/firmware upgrade status
Compliance

RoHS
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
In the Box

GR10-HW: Meraki Go Indoor Access Point
Wall mount and screw kit
Quick start guide
PSU and ethernet cable
Warranty

1 year hardware warranty
